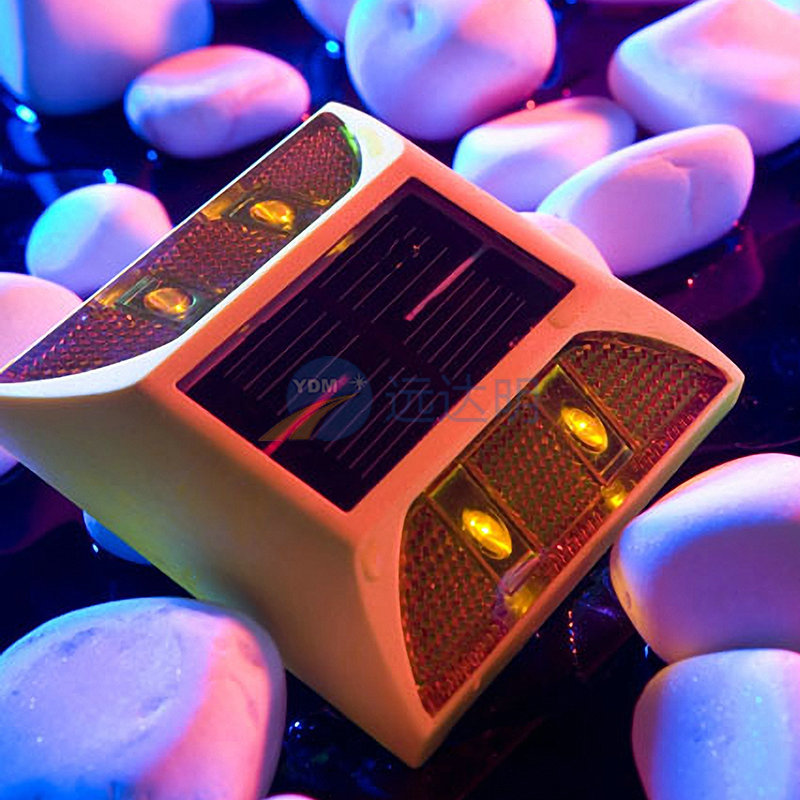

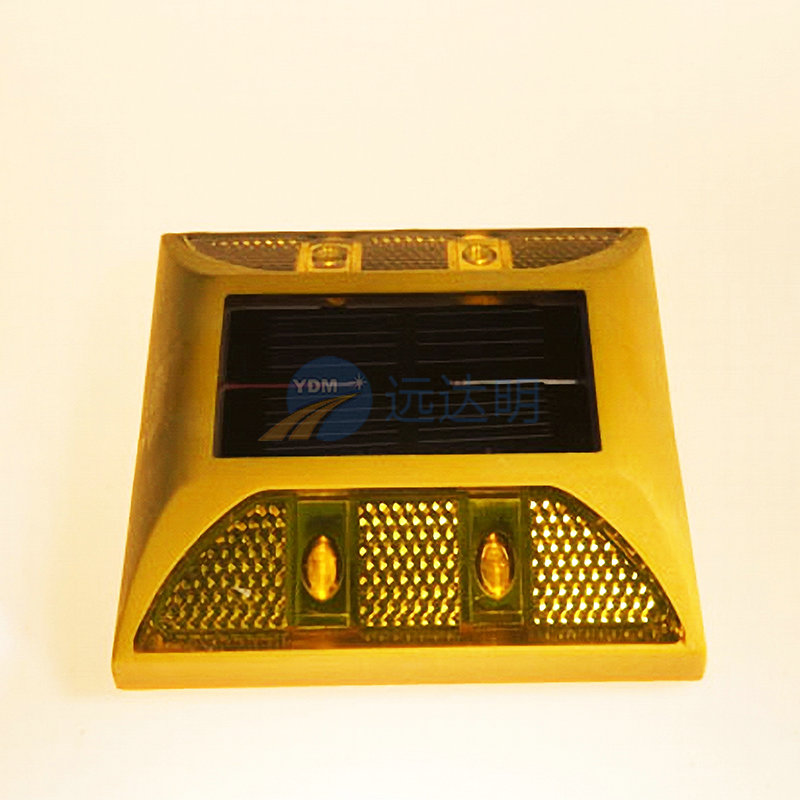

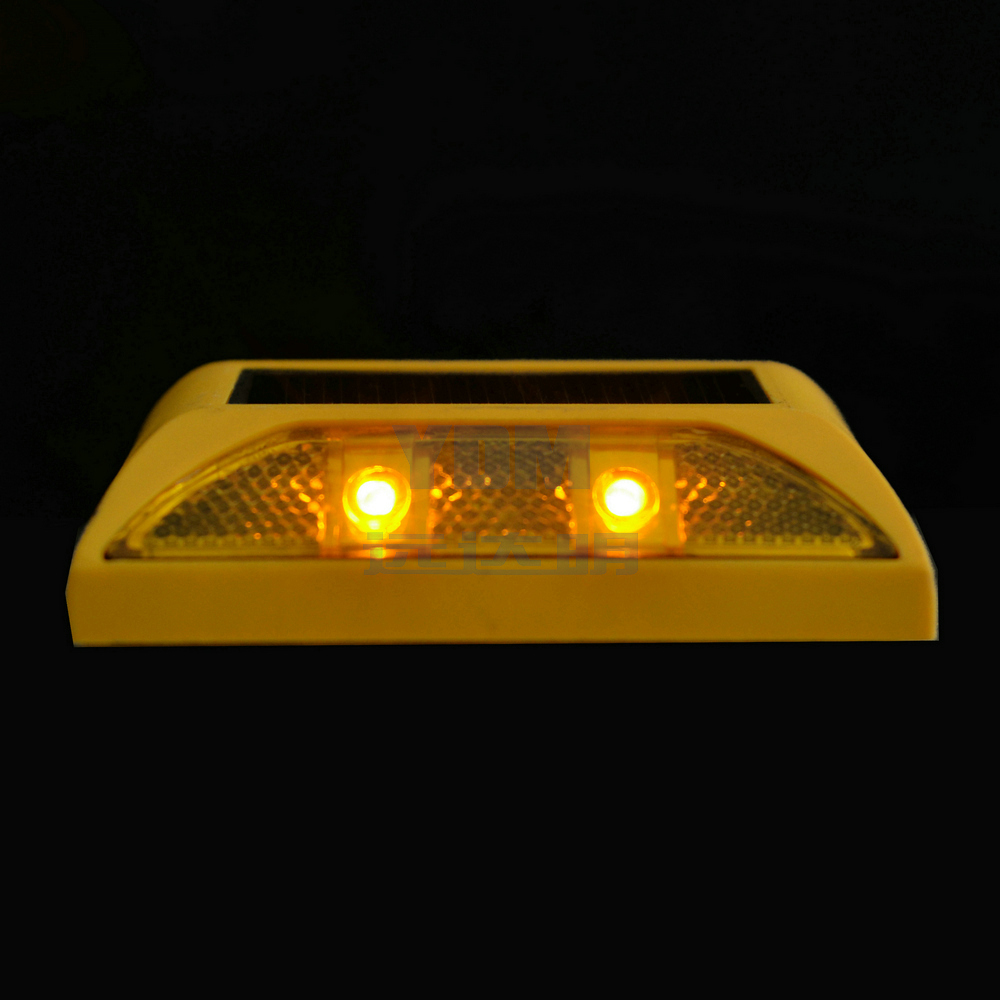

Solar FRP Road Stud

Installation:

1. Before installation, solar road studs shall be charged under sunlight for 1 hr, to check the studs can work normally.
2. Placing security isolation facilities for installation work is most important and must not be ignored. In the whole process of dynamic construction, no matter in an new closed road or a running road, every installers shall be in the isolation area. If in a running road, the ratio between security personnel and the installing personnel shall be 1:1; If in a closed road, 1:3.
3. Locate the installing position and ensure it is flat. For curving, cracked or uneven pavement, straighten it prior to installation.
4. Clean the installation location with a brush, meanwhile ensure the location is dry.
5. Glue the road stud thoroughly with proper amount of epoxy glue.
6. Firmly mount the stud on the fixing location & ensure the reflective part is facing the right traffic direction. Do clean the spilled epoxy glue if excessive amount is used.
7. Inspect the installed studs within 2hrs after installation, ensuring that all the studs are fixed in correct direction or not crooked.
8. Remove the isolation facilities in 4hrs after the stud’s installing glue is thoroughly cured.

Application:

• Road Delineation

• Accident black-spots / cluster sites

• Hazardous road layouts

• Areas adversely affected by poor visibility

• Cycle path

• Car parks

• Railway crossings outside of urban areas

• Harbour fronts and landing stages

Carton:

36*24*24.5cm GW：300g/pc NW: 280g/pc   48pcs/carton
